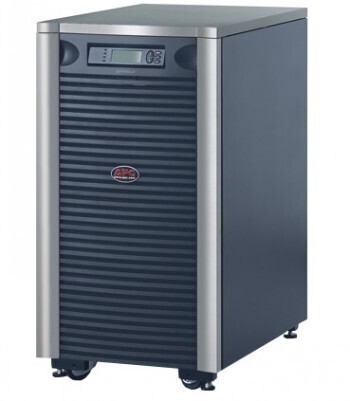

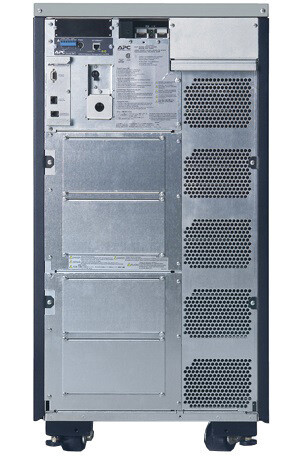

APC SYMMETRA LX 12KVA SCALABLE TO 16KVA N+1 TOWER, 220/230/240V OR 380/400/415V
- Paino 264 kg
- Teho(VA) 12 kVA
- Teho(W) 8400 W
- EAN -koodi
- 0731304221555
- Tuotekoodi
- SYA12K16I
- Tuote-ID
- 575
0 kpl, toimitusaika ei tiedossa
Puutteelliset tuotetiedot
Tuotekuvaus ei ole saatavissa valitsemallasi kielellä. Voit pyytää tuotetietojen täydentämistä yhteydenottolomakkeella.
APC Symmetra LX 12kVA Scalable to 16kVA N+1 Tower, 220/230/240V or 380/400/415V
APC Symmetra LX, 12000VA/8400W, Input 230V, 400V 3PH/Output 230V, Interface Port DB-9 RS-232, Smart-Slot, Extended runtime model
Includes: CD with software, Documentation CD, Installation Guide, User Manual, Web/SNMP Management Card
Automatic self-test,
Cold-start capable,
LCD display,
Modular design,
Network manageable,
Power conditioning,
Scalable runtime,
SmartSlot,
User-replaceable power modules.
APC Symmetra LX, 12000VA/8400W, Input 230V, 400V 3PH/Output 230V, Interface Port DB-9 RS-232, Smart-Slot, Extended runtime model
Includes: CD with software, Documentation CD, Installation Guide, User Manual, Web/SNMP Management Card
General Features:
Audible Alarms,
Automatic internal bypass,
Automatic restart of loads after UPS shutdown,
Automatic self-test,
Battery modules connected in parallel,
Cold-start capable,
Configurable for N+1 internal redundancy,
Disconnected battery notification,
Field-replaceable power distribution panel,
Frequency and voltage regulation,
Generator Compatible,
Hot-swappable batteries,
Hot-swappable intelligence modules,
Hot-swappable power modules,
InfraStruXure Manager Compatible,
Input Power Factor Correction,
Intelligent Battery Management,
LCD display,
Manageable external batteries,
Modular design,
Network manageable,
Plug-and-Play external batteries,
Power conditioning,
Power Modules connected in parallel,
Predictive failure notification,
Programmable Frequency,
Rack/Tower Convertible,
Redundant Intelligence Modules,
Removable input/output wiring tray,
Resettable circuit breakers,
Safety-agency approved,
Scalable Power Capacity,
Scalable runtime,
Shippable with modules installed,
SmartSlot,
User-replaceable batteries,
User-replaceable intelligence modules,
User-replaceable power modules.
Suosittelemme tämän kanssa
Ominaisuudet
| Kokonaislähtöteho (VA) | 12 kVA |
| Lähtöteho | 8400 W |
| Hätäpysäytys (EPO) | Kyllä |
Akku
| Tyypillinen varmuuskopioaika täydellä kuormituksella | 7,5 min |
| Tyypillinen varmuuskopioaika puolikkaalla kuormituksella | 20,2 min |
| Vaihtoakku | SYBT5 |
Suunnittelu
| Tuotteen väri | Musta |
Ympäristöolosuhteet
| Käyttölämpötila (T-T) | 0 - 40 °C |
| Varastointilämpötila | -15 - 45 °C |
| Käytön suhteellinen kosteus (H-H) | 0 - 95% |
| Säilytysympäristön kosteus | 0 - 95% |
| Käyttökorkeus | 0 - 3000 m |
Paino ja mitat
| Paino | 264 kg |
Logistiikkatiedot
| Harmonoidun järjestelmän nimikkeistökoodi (HS) | 85078000 |
Muut ominaisuudet
| Akkutyyppi | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Käyttöliittymä | DB-9 RS-232, Smart-Slot |
| Lähtöliittimet | (1) Hard Wire 3-wire (H N + G) |
| Syöttöliittimen tyyppi | Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G) |
| Mitat (LxSxK) | 480 x 730 x 940 mm |
| Nimellinen lähtöjännite | 230 V |
| Lisätietoa lähtöjännitteestä | Configurable for 220: 230 or 240 nominal output voltage |
| I/O-portit | Available Smart Slot Interface Quantity - 1 Pre-Installed SmartSlot Cards - AP9619 |
