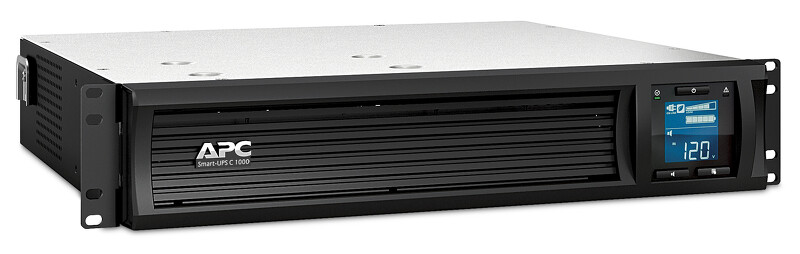

APC SMART-UPS C 1000VA LCD RM 2U 230V WITH SMARTCONNECT

  • Paino 20,5 kg
  • Teho(VA) 1 kVA
  • Pistorasioiden määrä 4 AC-pistorasia(a)
  • Teho(W) 600 W
EAN -koodi
0731304332930
Tuotekoodi
SMC1000I-2UC
Tuote-ID
71447
7 kpl, toimitus 2 arkipäivässä
Yleinen saatavuus 12 kpl
Kysy lisätietoja
Certainty in your connected world
Protect your entry-level servers, small switches, networking devices, and point-of-sale (POS) equipment with the Smart-UPS SMC1000-2UC with APC SmartConnect – the first cloud enabled UPS for distributed IT. The SMC1000-2UC UPS provides backup battery power in the event of a power outage, while safeguarding your equipment from harmful power conditions, spikes and surges. The included service-free cloud monitoring feature is accessible from any internet connected device, and maximizes the life and performance of your UPS by providing proactive advice and life cycle recommendations so you can remotely monitor your power infrastructure from anywhere in the world. Automatic green mode ensures you are operating at the highest level of efficiency, and intelligent battery management maximizes performance. With a 600-watt output power capacity and six battery and surge protected outlets, this Smart-UPS is ideal for home users and small- to medium-sized businesses.


The first cloud enabled UPS for distributed IT


The SMC1000-2UC comes with our innovative remote cloud monitoring solution, APC SmartConnect, a feature which allows you to view the status of your UPS on a secure web portal via any internet connected device. APC SmartConnect maximizes the life and performance of your UPS through automatic notifications, firmware updates, and advanced support.

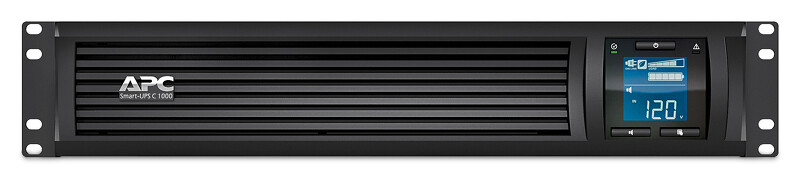

Intuitive LCD interface for status updates and configuration


The bright, easy-to-read LCD interface provides real-time status updates of your APC UPS with multiple language options, and intuitive navigation keys.


Intelligent battery management


For easy maintenance, the Smart-UPS SMC1000-2UC provides a predictive month and year when battery replacement is recommended. It also prolongs battery life by regulating the charge voltage in relation to battery temperature. Detect faulty batteries with the periodic battery self-test and disconnected battery notification


Automatic Voltage Regulation (AVR)


AVR adjusts high and low voltages to a safe level, ensuring your equipment had reliable power and preserving the life of the battery.


Pure sine wave output


Pure sine wave output while on battery provides the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.


Green mode for reduced power consumption


Operate efficiently with the Smart-UPS green mode, which allows you to conserve energy without sacrificing any protection when power quality is within optimal levels and power conditioning is not necessary.


PowerChute software for safe system shutdown


Designed for exceptional usability, PowerChute Business Edition software provides safe system shutdown in the event of an extended power outage while preventing potential data corruption. Find cost savings by using PowerChute to monitor your equipment’s energy consumption.


ENERGY STAR Qualified


Acknowledged for meeting standardized energy efficiency requirements and passing the program's testing, the Smart-UPS SMC1000-2UC has been recognized for its ability to save you money while protecting the environment. Any UPS that is ENERGY STAR Qualified must achieve operational efficiency in the top 25 percent of the market, thus demonstrating the ability to allow you to realize lower electrical operating costs, and a reduced carbon footprint.

Ominaisuudet

UPS topologia Linjainteraktiivinen
Kokonaislähtöteho (VA) 1 kVA
Lähtöteho 600 W
Aaltomuoto Sini
Tulon käyttöjännite (min.) 170 V
Tulon käyttöjännite (maks.) 300 V
Syötteen taajuus 50/60 Hz
Lähdön käyttöjännite (min.) 220 V
Lähdön käyttöjännite (maks.) 240 V
Lähtötaajuus 50/60 Hz
Automaattinen jännitteen säätö (AVR) Kyllä
Energialuokka 680 J
Lähtöjännite harmoninen kokonaissärö (THD) 5%
Melutaso 41 dB
Ylijännitesuoja Kyllä
Äänihälytykset Kyllä
Äänelliset hälytystilat Hälyttää kun patteri käytössä, Akku lopussa -hälytys, Ylikuormituksen hälytys

Liitettävyys

Pistorasian tyypit C13 liitin
Virtapistoke C14 liitin
Ulostulojen määrä 4 AC-pistorasia(a)
Lähtöjen lukumäärä (Vara-akku & suojaus) 4

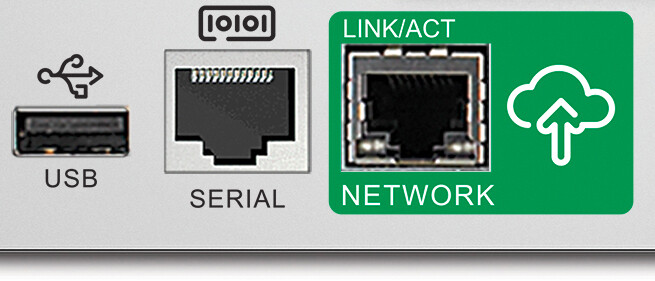

USB-portti Kyllä
USB 2.0 -porttien määrä 1
Sarjaliitäntä Kyllä
Sarjaliitännän tyyppi RS-232
Ethernet LAN (RJ-45) -portit 1
SmartSlot Kyllä

Akku

Akkuteknologia Sealed Lead Acid (VRLA)
Tuettu paristojen lukumäärä 1
Akun kestoikä (maks.) 6 vuosi/vuosia
Akun latausaika 3 h
Vaihtoakku APCRBC124

Suunnittelu

Kotelo Telineasennettava
Tuotteen väri Musta
Telineen kapasiteetti 2U
Johdon pituus 2,44 m
Näytön tyyppi LCD
Sertifiointi CSA, CSA C22.2 No. 107.1, FCC Part 15 Class B, ICES-003, UL 1778, REACH

Ympäristöolosuhteet

Käyttölämpötila (T-T) 0 - 40 °C
Varastointilämpötila -15 - 45 °C
Käytön suhteellinen kosteus (H-H) 0 - 95%
Säilytysympäristön kosteus 0 - 95%
Käyttökorkeus 0 - 3000 m
Käytön ulkopuolinen korkeus 0 - 15000 m

Tekniset tiedot

Kestävän kehityksen sertifikaatit ENERGY STAR, Green Premium, RoHS

Paino ja mitat

Tuotteen leveys 432 mm
Tuotteen syvyys 406 mm
Tuotteen korkeus 86 mm
Paino 20,5 kg
Pakkauksen leveys 535 mm
Pakkauksen syvyys 570 mm
Pakkauksen korkeus 235 mm
Pakkauksen paino 20,7 kg

Pakkaustiedot

Telineasennussarja Kyllä
Sisältää johdot RJ-45, RS-232
Resurssi-CD Kyllä
Ohjelmisto-CD Kyllä

Logistiikkatiedot

Tuotteita lavalla 16 kpl
Harmonoidun järjestelmän nimikkeistökoodi (HS) 85078000
