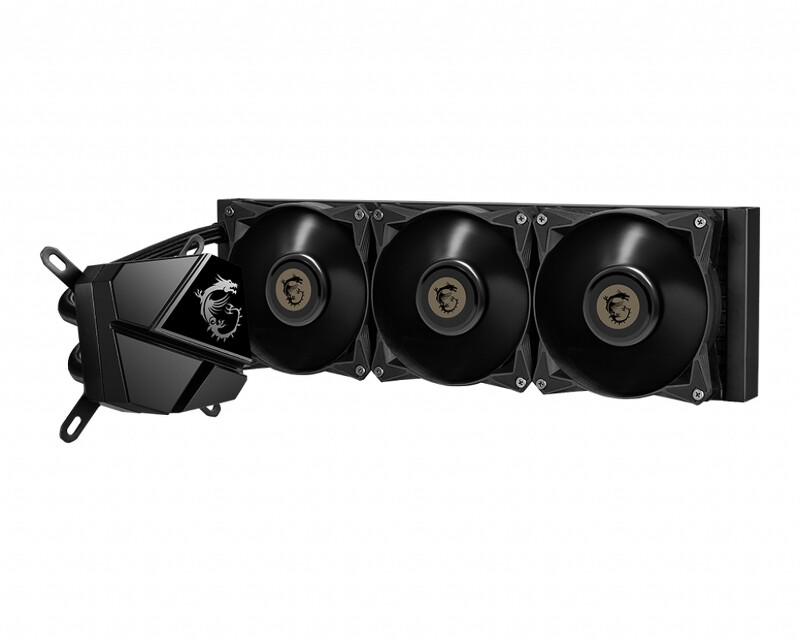

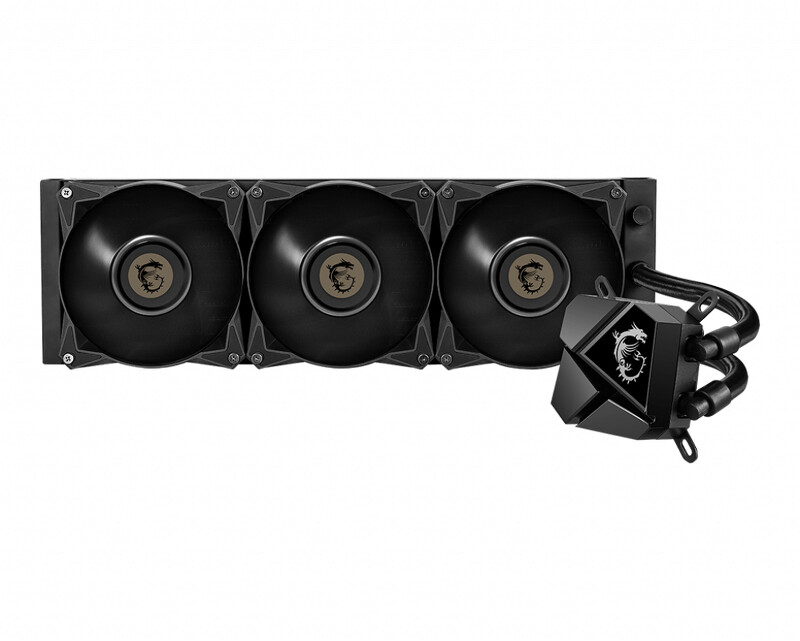

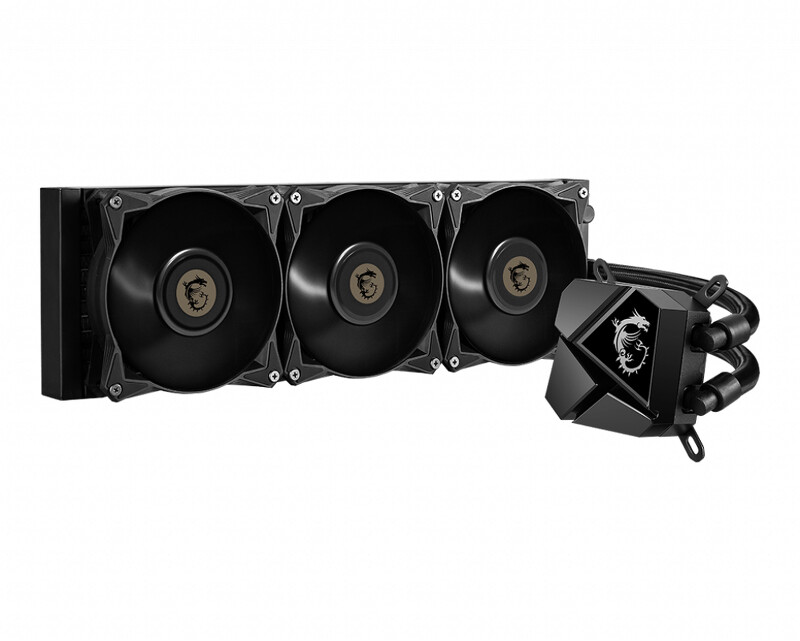

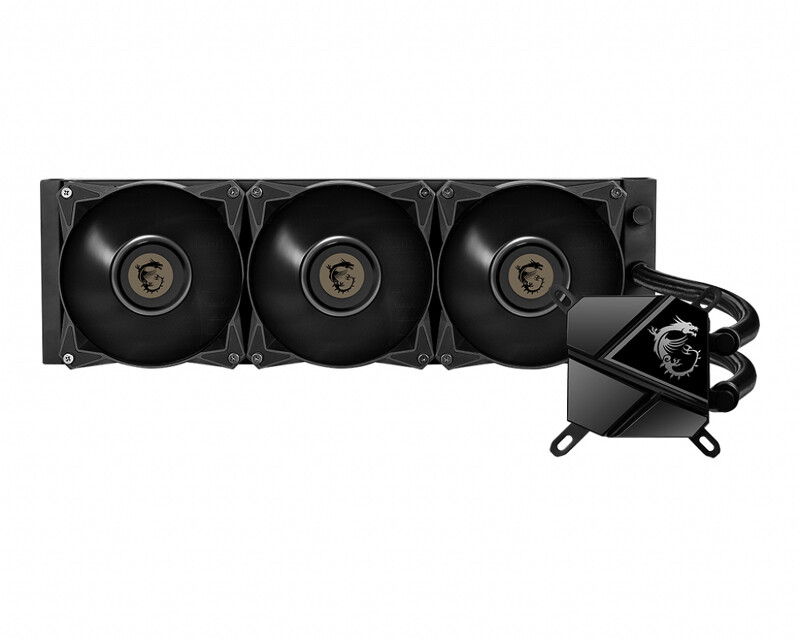

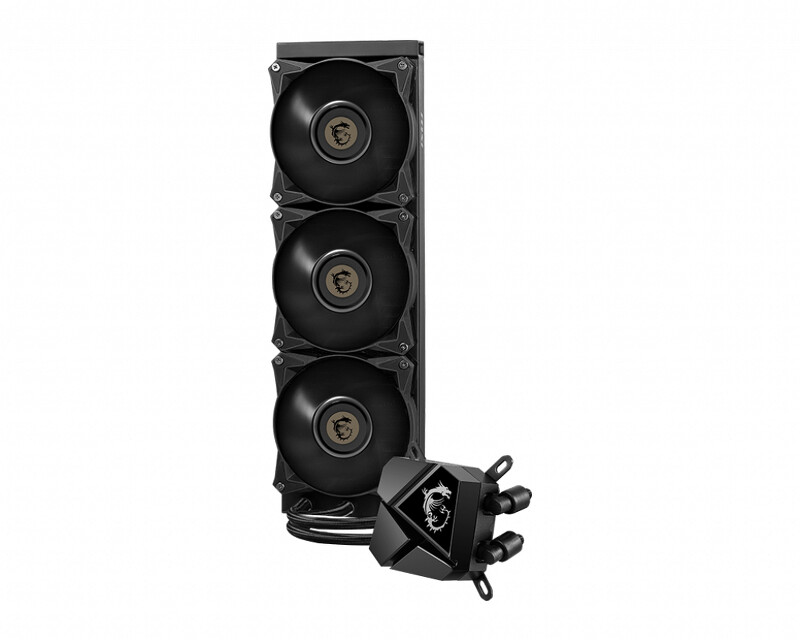

MSI MAGCORELIQUID P360 Suoritin All-in-one-nesteenjäähdytin Musta
- EAN -koodi
- 4719072851484
- Tuotekoodi
- MAG CORELIQUID P360
- Tuote-ID
- 6616743
Tuotteen hinta tai saatavuustiedot puutteelliset. Ole hyvä ja kysy tuotteen saatavuutta asiakaspalvelustamme.
REBELLIOUS AND DISCREET
The MAG CORELIQUID P Series liquid coolers' water block is not the typical design you frequently see in the market today. It is modest and discreet, but with great quality. It is split into four pieces of unique diamond-cut areas, with three constructed in piano black and the last one featuring our proud MSI logo emblem.
LGA 1700 COMPATIBLE
The MAG CORELIQUID P Series liquid cooler provides out of box support for LGA 1700.
RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.
HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
EXTENSIVE COMPATIBILITY
Stylish yet built for flexibility, the MAG CORELIQUID P Series has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.
The MAG CORELIQUID P Series liquid coolers' water block is not the typical design you frequently see in the market today. It is modest and discreet, but with great quality. It is split into four pieces of unique diamond-cut areas, with three constructed in piano black and the last one featuring our proud MSI logo emblem.
LGA 1700 COMPATIBLE
The MAG CORELIQUID P Series liquid cooler provides out of box support for LGA 1700.
RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.
HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.
EXTENSIVE COMPATIBILITY
Stylish yet built for flexibility, the MAG CORELIQUID P Series has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.
Muut ostivat tämän kanssa näitä tuotteita
Suorituskyky
| Sopii huoneisiin | Suoritin |
| Malli | All-in-one-nesteenjäähdytin |
| Tuettu prosessorin kanta | LGA 1150 (Pistoke H3), LGA 1151 (pistoke H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011-v3 (Socket R), LGA 2066, Kanta AM2, Kanta AM2+, Kanta AM3, Socket AM3+, Kanta AM4, Socket FM1, Socket FM2, Socket |
| Suurin ilmavirtaus | 78,73 cfm |
| Tukee pulssinleveysmodulaatiota (PWM) | Kyllä |
| Tuulettimen äänitaso (min.) | 14,3 dB |
| Tuulettimen äänitaso (max.) | 34,3 dB |
| Tuuletinlaakeriteknologia | Kaksoiskuulalaakeri |
| Pumpun moottorin nopeus | 4200 RPM |
| Tuulettimen nopeuden (min.) | 500 RPM |
| Tuulettimen nopeus (maks.) | 2000 RPM |
| Tuulettimen staattinen paine | 2,39 mmH2O |
| Pumpun vikaantumisväli (MTTF) | 100000 h |
| Keskimääräinen vikaantumisaika (MTTF) | 70000 h |
Suunnittelu
| Tuotteen väri | Musta |
| Materiaali | Alumiini |
| Tuulettimien määrä | 3 tuuletin(ta) |
Virranhallinta
| Tuulettimen virrankulutus | 1,8 W |
| Pumpun virrankulutus | 4,08 W |
| Pumpun jännite | 12 V |
| Pumpun virta | 0,34 mA |
| Tuulettimen jännite | 12 V |
| Tuulettimen virta | 0,15 A |
Paino ja mitat
| Jäähdyttimen leveys | 39,6 cm |
| Jäähdyttimen syvyys | 2,7 cm |
| Jäähdyttimen korkeus | 12 cm |
| Putken pituus | 40 cm |
| Waterblock-vesivuotosuojan leveys | 7,05 cm |
| Waterblock-vesivuotosuojan syvyys | 5,2 cm |
| Waterblock-vesivuotosuojan korkeus | 7,05 cm |
| Tuulettimen mitat (LxSxK) | 120 x 120 x 25 mm |
Muut ominaisuudet
| Melutaso | 14,3 dB |
Logistiikkatiedot
| Harmonoidun järjestelmän nimikkeistökoodi (HS) | 84733080 |
